1371&1609&1538 Fluoroplastic Insulation Wire

Your present position:Home » Product

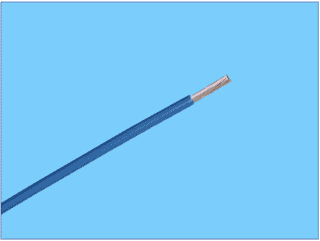

1371&1609&1538 Fluoroplastic Insulation Wire

Product introduction

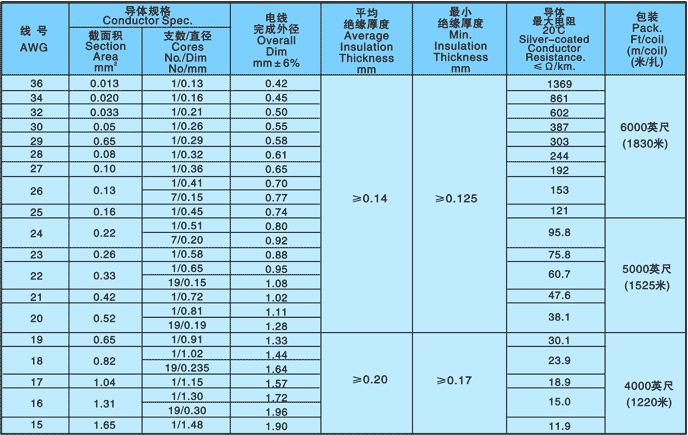

1.Rated specification:150℃,1609&1538,rated voltage is 125V,1371 voltage is not specified;

2.Conductor is single or multiple twisted wire made of tinplating copper or bare copper;

3.Insulator 1538 is made of FEP,while insulators 1371 and 1069 are made of ETFE plastic,and optional colors are red,blue,yellow,green,black,orange as well as transparent;

4.Appliance is of good performance against high voltage,loss in high frequency and humidity,and it provides high resistance of insulation;

5.Good heatproof,flaming resistant,aging resistant,oil preventing,solvent preventing,acid and alkali resistant performance;

6.It applies to internal wire distribution in lamps,electronics and appliances that require requier flaming resistant circuit with high transmission rate,and applies to electromagnetic wire of high-frequency transformer and inductance loop.
