5231 Fluoroplastic Insulation Wire

Your present position:Home » Product

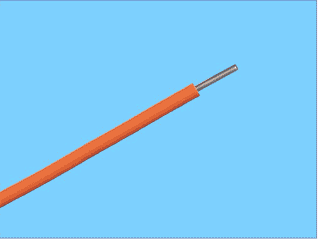

5231 Fluoroplastic Insulation Wire

Product introduction

1.Rated specification:250℃ 300V;maximum working voltage is 600V;

2.Conductor is single or multiple twisted wire made of silver-plating copper or nickel-plating copper.Resistance of silver-plating copper is relatively lower,and nickel-plating copper is more applicable to high temperature;

3.Insulator is twisted by PTFE plastic,and optional colors are red,blue,yellow,green,black,orange;

4.Appliance is of good performance against high voltage,loss in high frequency and humidity,and it provides high resistance of insulation;

5.Good heatproof,flaming resistant,aging resistant,oil preventing,solvent preventing,acid and alkali resistant performance;

6.It applies to internal wire distribution in lamps,electronics and appliances that require requier flaming resistant circuit with high transmission rate.
